The prospects of Outdoor LED Video Walls in India are very high and this is a booming sector. Given the fact that India is a booming economy and the market keeps expanding, it is only natural that a businessman wants his products to be well advertised and what better way than a LED video wall. Outdoor LED video walls are a sensation in India due to the masses that they appeal. It is however very important to choose the right equipment. Also, you would want a good quality LED video wall at low rates & SEGi LED a Delhi based Indian firm is the right place to be.

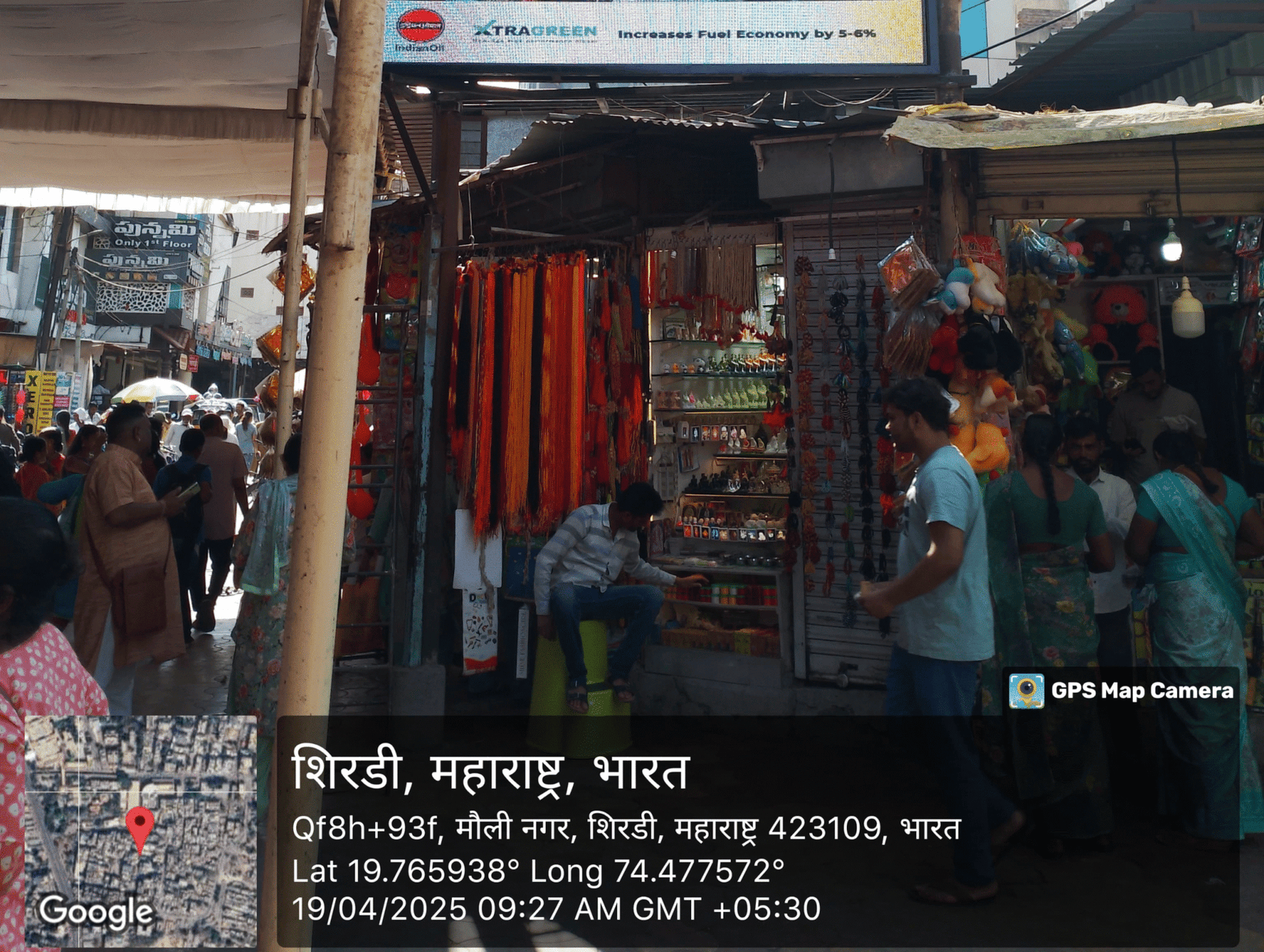

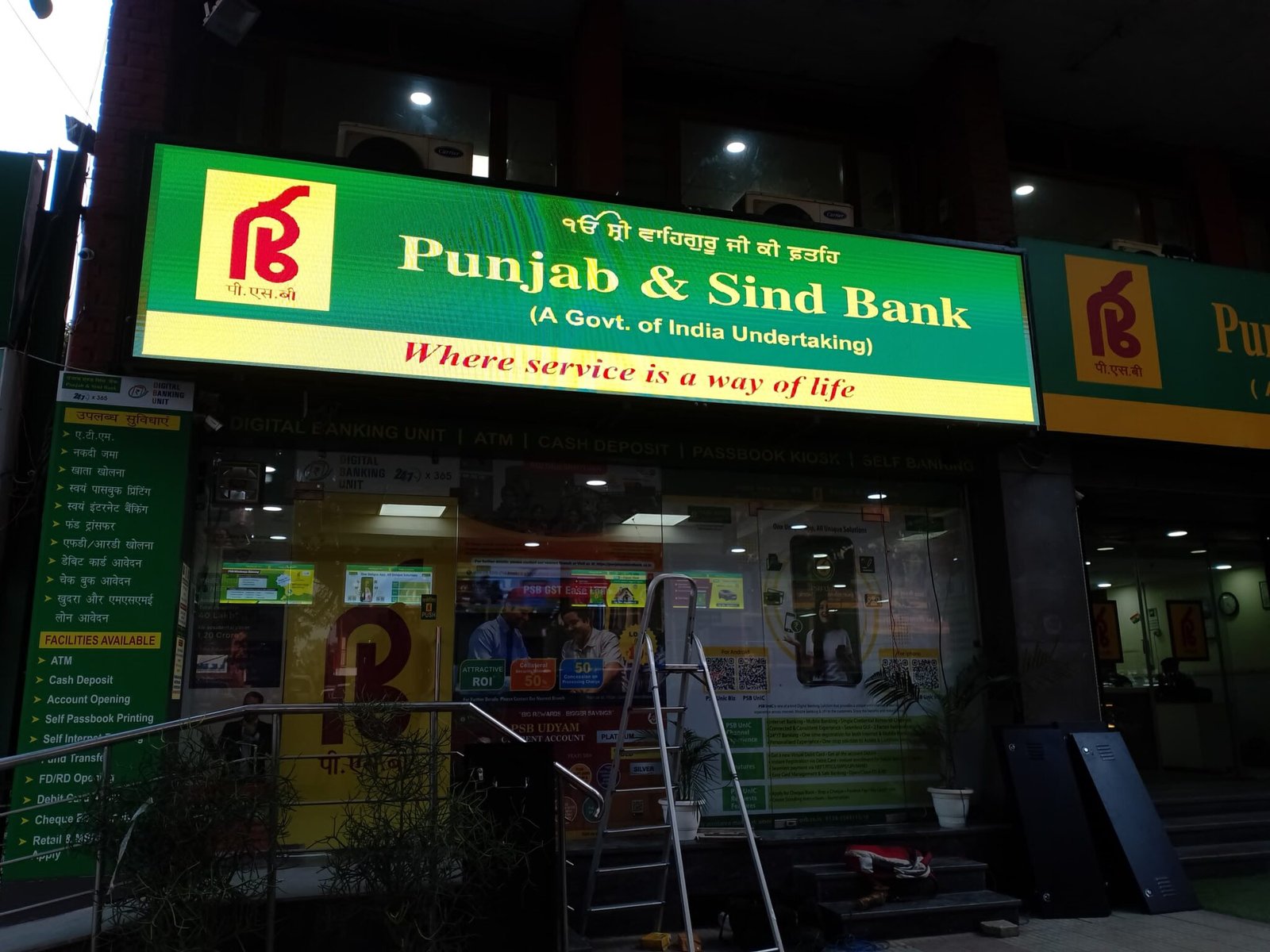

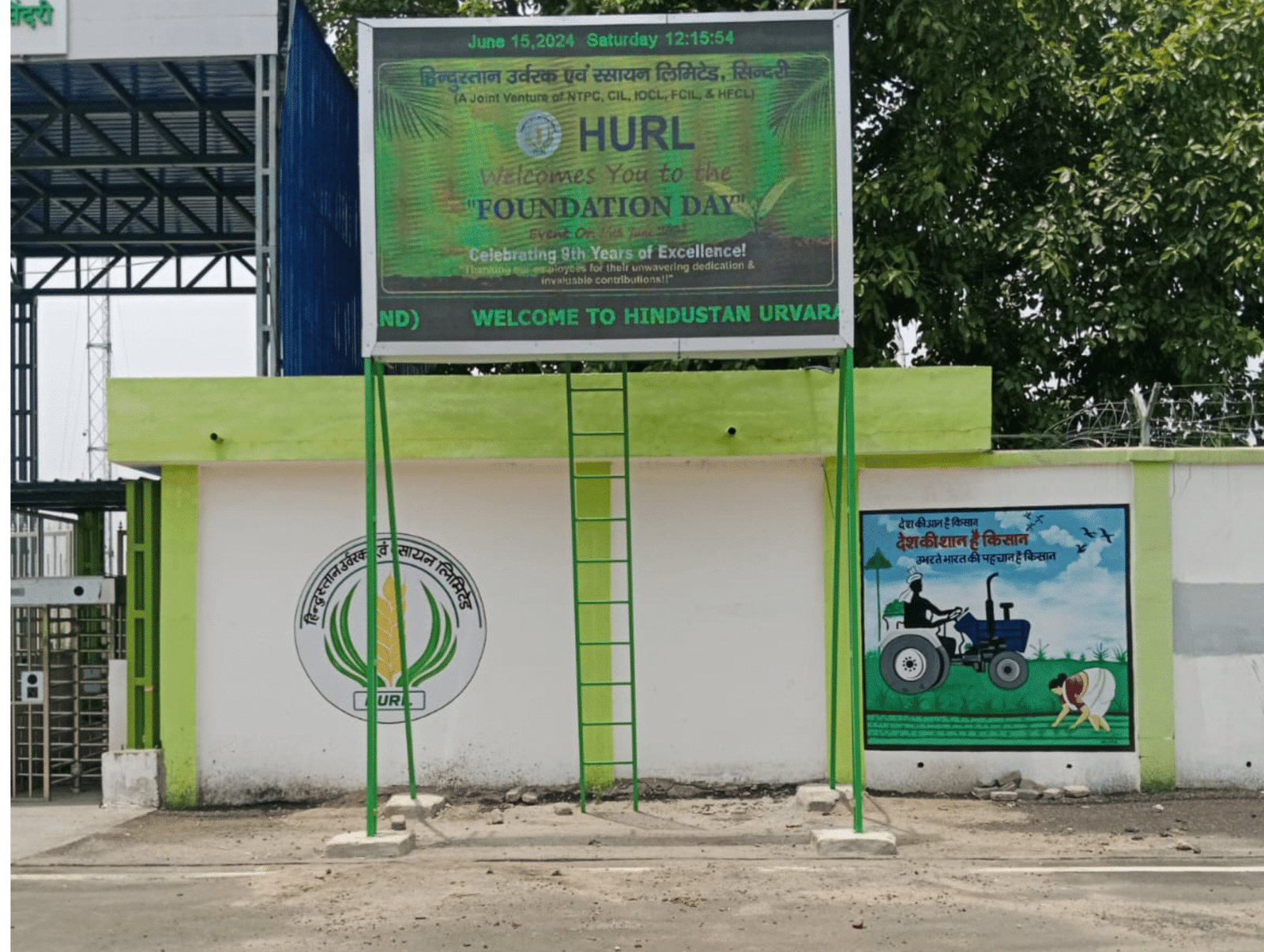

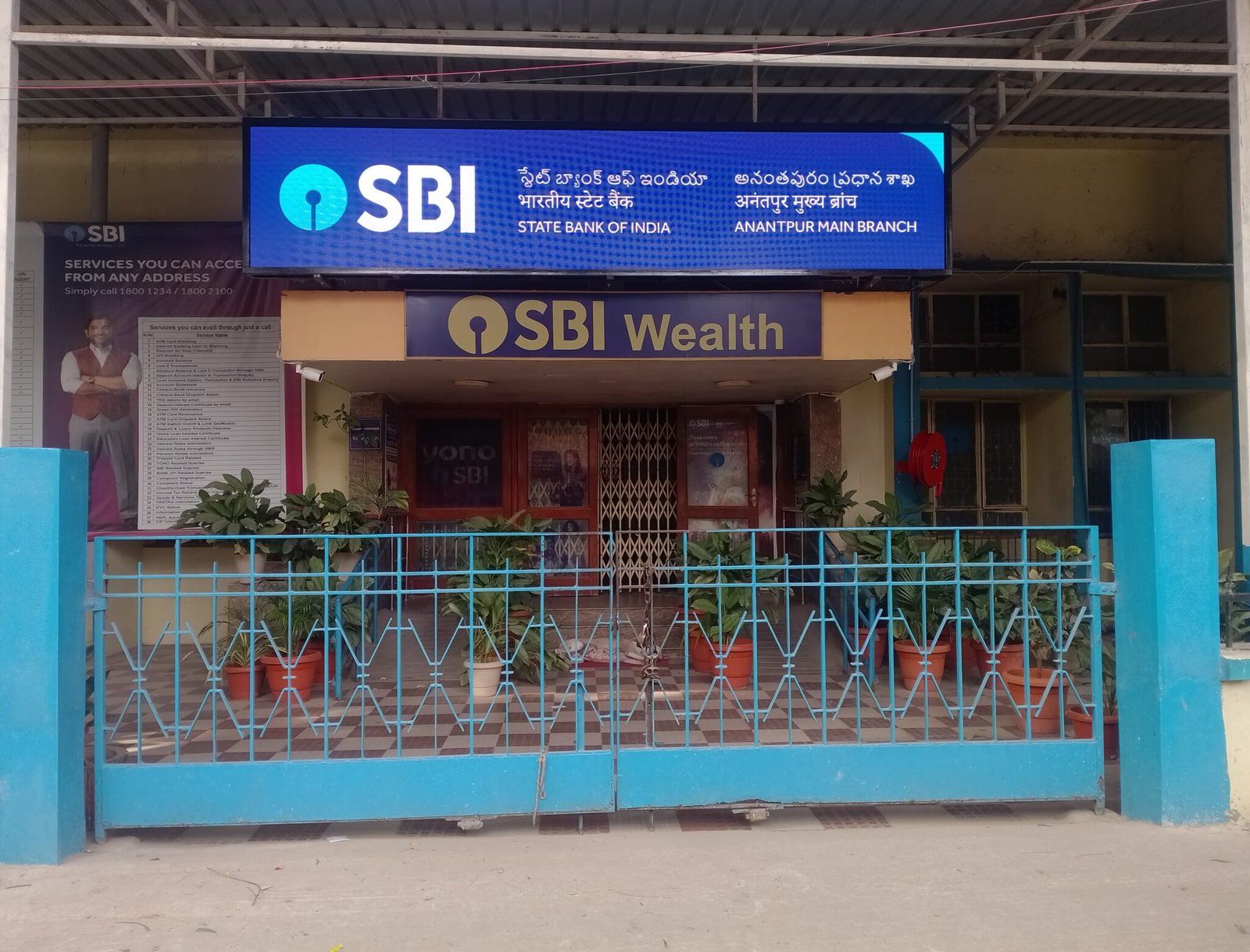

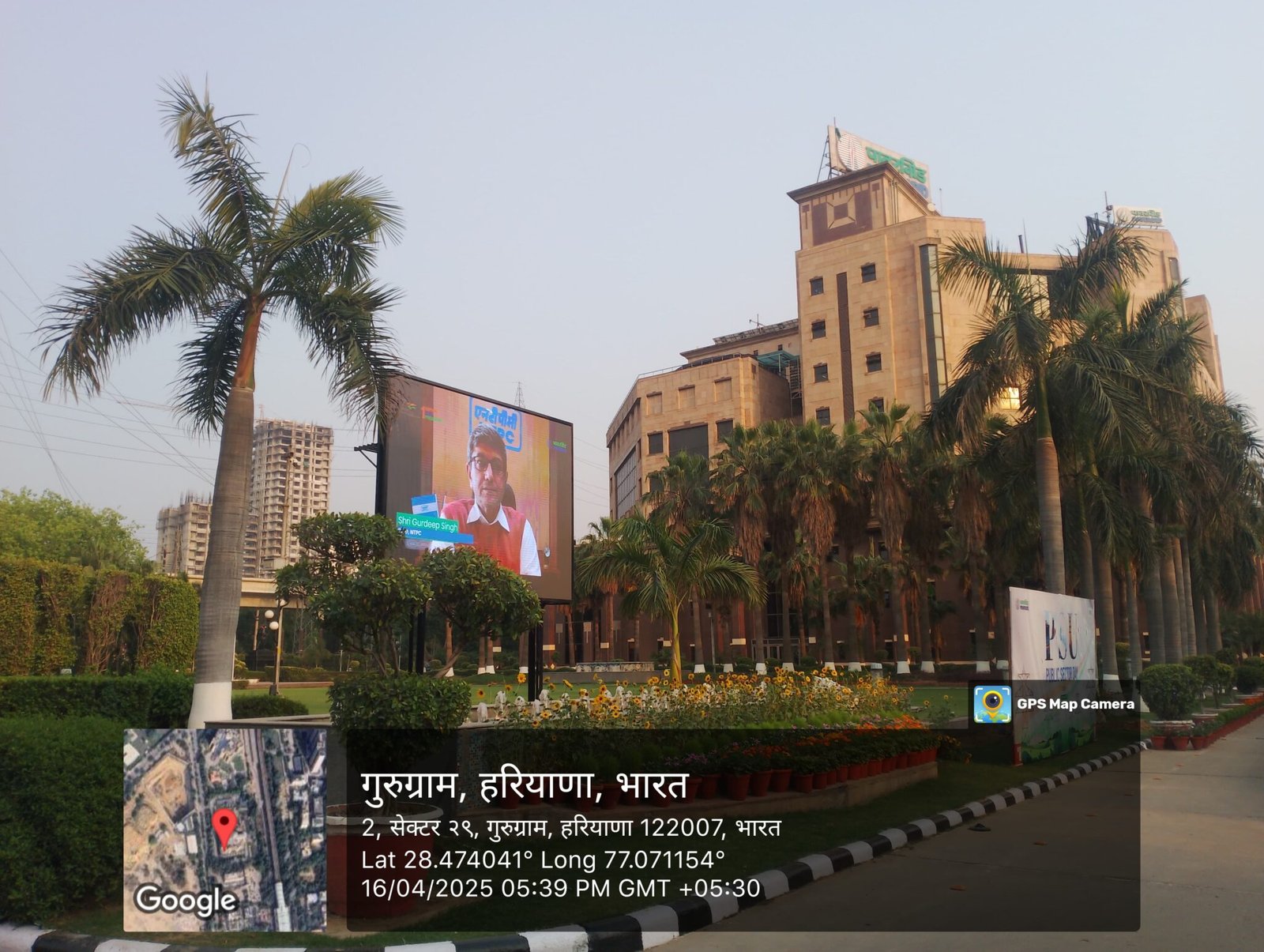

One of the biggest requirements of a good outdoor video wall display is that they need to be resistant to all types of environmental conditions. The outdoor video wall display can be mounted easily on any wall or pillar or poles. They are rugged in nature and hence, can withstand tough outdoor conditions. Irrespective of the weather condition, these display systems offer the best image & video quality. SEGi LED has worked hard to offer the best outdoor video wall display solutions to its customers. Our products are reasonably priced. We take little time in designing these displays. We use start-of-art technology for the display systems.
| Parameter | SP2X5 | SP3X0 | SP3X9 | SP4X0 | SP4X8 | SP6X0 | SP8X0 | SP10X0 |
|---|---|---|---|---|---|---|---|---|
| Operating Environment | Outdoor Series | |||||||
| Pixel Configuration | SMD 3 in 1 / DIP | |||||||
| Model Series | OD Series | |||||||
| Pixel Pitch (mm) | 2.5-2.9 | 3.0 | 3.9 | 4.0 | 4.8-5.0 | 6.0-6.6 | 8.0 | 10.0 |
| Cabinet Size | As per Cabinet Standards | |||||||
| Cabinet Type | Mild Steel / Aluminium Diecast / Magnesium Alloy / Carbon Fiber / Polymer Alloy / higher | |||||||
| LED Type | SMD 1515 | SMD 1921 | SMD 2121 | SMD 2525 | SMD 2727 | SMD 3535 | |||||||
| Pixel Density (pixels/sqm) | 160000-112896 | 111111 | 65536 | 62500 | 43500-40000 | 27777-22500 | 15625 | 10000 |
| Driving IC | IC as per requirement | |||||||
| Brightness (nits) | 5500-12000 | |||||||
| Contrast Ratio | 5000:1 | 10000:1 | |||||||
| Grey Scale | 12-18 Bit | |||||||
| Service Access | Front / Rear | |||||||
| Pixel Calibration | Auto Color & Brightness Calibration | |||||||
| Drive Mode | Constant Current | |||||||
| Color Temperature | 2000K – 10000K Adjustable | |||||||
| Power Redundancy | Optional | |||||||
| Signal Redundancy | Optional | |||||||
| Curved Installation | Optional | |||||||
| Minimum View Distance (m) | ≥2.5 | ≥3.0 | ≥3.9 | ≥4.0 | ≥4.8 | ≥6 | ≥8 | ≥10 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Voltage | 110-280V AC, 50/60 Hz | |||||||
| Viewing Angle | 160° / 160° | |||||||
| Power Consumption (W/m²) | 235-800 | |||||||
| Ingress Protection | IP54 | IP65 | IP66 | IP67 | IP68 | |||||||
| Earth Leakage Current | <3mA | |||||||
| MTBF | >10,000 hours | |||||||
| Life Span | >100,000 hours | |||||||
| Operating Temperature | -30°C to 60°C | |||||||
| Storage Temperature | -30°C to 60°C | |||||||
| Humidity Range | 5% RH to 95% RH | |||||||
| Preferred Applications | Outdoor Fixed Installation, Events Rental Industry, Vehicle Mounted Screen, Dancefloor, Variable Message Signboards, Pollution Parameter Displays, Digital Hoardings, Bill Boards, , Malls, Retail, Information Display, Airports, Railway Stations, Metro Stations, Petrol Stations, Stadiums, Smart Cities, Banks, Hotels, Clubs, etc. | |||||||
Remark: Above data is subject to change & adjustment without prior notice due to continuous R&D by our team. The above specifications can be customized with technical enhancements to meet buyer/client requirement, necessary arrangements are made in the product to meet the required parameters. The offered product shall be as per requirement of buyer & hence precise details can be sought from our team. Offered product specifications are adjusted & revised in order to match the actual product performance & specifications.
Brightness – Outdoor LED Video wall brightness is different as compared to indoor LED video wall. The screen of an outdoor LED must be visible and the brightness should be as per the time of the day. The brightness should be tweaked at night and in the day its brightness should be high. The new generation of LED screens is offered by Visual Lead. The cost of consistency and brightness can be steeper, but it is a worthy investment that will have the best index of luminosity. Our high bright series offers a great brightness feeding the purpose of equipment in scotching sunshine as well.
Weather-resistance – An outdoor LED video wall remains out of the shelter all the time so it becomes necessary for them to be weather-resistance especially rain-proof, lightning-proof, and heat-resistant. To ensure excellent heat dissipation, even during the hottest days of summer, Visual Led designs outdoor led displays that use proprietary resin treatment and high-efficiency electronics.
Energy-efficient – While broadcasting ads, LED displays are used specifically to raise revenues. It would lose profitability if electricity demand is too high since the running expense will be too costly.
Thus, simply call our team of professionals who will help in providing you the best outdoor led video wall experience for your concern.
