Direct view LED video wall technology is becoming an increasingly popular video wall solution due to its seamless image, scalability to any size or shape, and excellent optical characteristics that make video wall content look great from any angle. With advanced technology and design innovation, SEGi LED video wall solutions meet the needs of nearly any LED video wall customer.

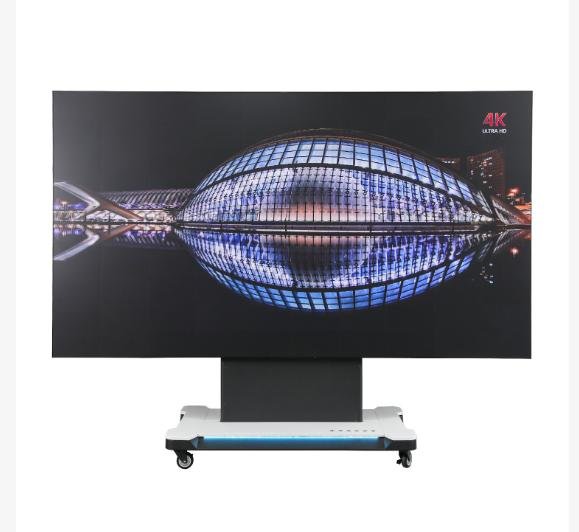

Our product provides a seamless, high-resolution, high-contrast display solution for interior areas with short viewing distances. Its compact and lightweight design guarantees easy and quick installation. The indoor LED series delivers the excellent image and video quality in any indoor setting. Using the most advanced PWM (Pulse Width Modulation) image processing technology, the Indoor LED series ensures an excellent, flicker free viewing experience. These products are now widely used in high-end retail, transportation applications (flight and railway transit), command centres, conference halls along with broadcast studios where the quality of the display is extremely important.
| Parameter | SP0X67 | SP0X9 | SP1X2 | SP1X5 | SP1X8 | SP2X0 | SP2X5 |
|---|---|---|---|---|---|---|---|
| Operating Environment | Fine Pixel | ||||||
| Pixel Configuration | Micro LED | Full Flip-Chip COB | COB | QCOB | MIP | GOB | Mini LED | SMD 3 in 1 | ||||||
| Model Series | FP Series | ||||||
| Pixel Pitch (mm) | 0.6-0.7 | 0.9 | 1.25 | 1.49-1.56 | 1.86-1.89 | 2.0 | 2.5-2.9 |
| Cabinet Size | As per Cabinet Standards | ||||||
| Cabinet Type | Aluminium Diecast / Magnesium Alloy / Carbon Fiber / Polymer Alloy / higher | ||||||
| Pixel Density (pixels/sqm) | 2604456-1643656 | 1137778 | 640000 | 444444-409600 | 288906-277900 | 250000 | 160000-112896 |
| Driving IC | IC as per requirement | ||||||
| Brightness (nits) | 800-1500 | ||||||
| Contrast Ratio | 10000:1 | 20000:1 | 100000:1 | ||||||
| Grey Scale | 12-18 Bit | ||||||
| Service Access | Front | ||||||
| Pixel Calibration | Auto Color & Brightness Calibration | ||||||
| Drive Mode | Constant Current | ||||||
| Color Temperature | 2000K – 10000K Adjustable | ||||||
| HDR10 or more | Yes | ||||||
| Cable-free Design | Optional | ||||||
| Power Redundancy | Optional | ||||||
| Signal Redundancy | Optional | ||||||
| Curved Installation | Optional | ||||||
| Minimum View Distance (m) | ≥0.6 | ≥0.9 | ≥1.2 | ≥1.5 | ≥1.8 | ≥2 | ≥2.5 |
| Refresh Rate (Hz) | 3840-7680 | 3840-7680 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Voltage | 110-280V AC, 50/60 Hz | ||||||
| Viewing Angle | 170° / 170° | ||||||
| Power Consumption (W/m²) | 200-350 | ||||||
| Ingress Protection | IP30 | IP40 | IP50 | IP31 | IP41 | IP45 | IP65 | ||||||
| Earth Leakage Current | <3mA | ||||||
| MTBF | >10,000 hours | ||||||
| Life Span | >100,000 hours | ||||||
| Operating Temperature | -30°C to 60°C | ||||||
| Storage Temperature | -30°C to 60°C | ||||||
| Humidity Range | 5% RH to 95% RH | ||||||

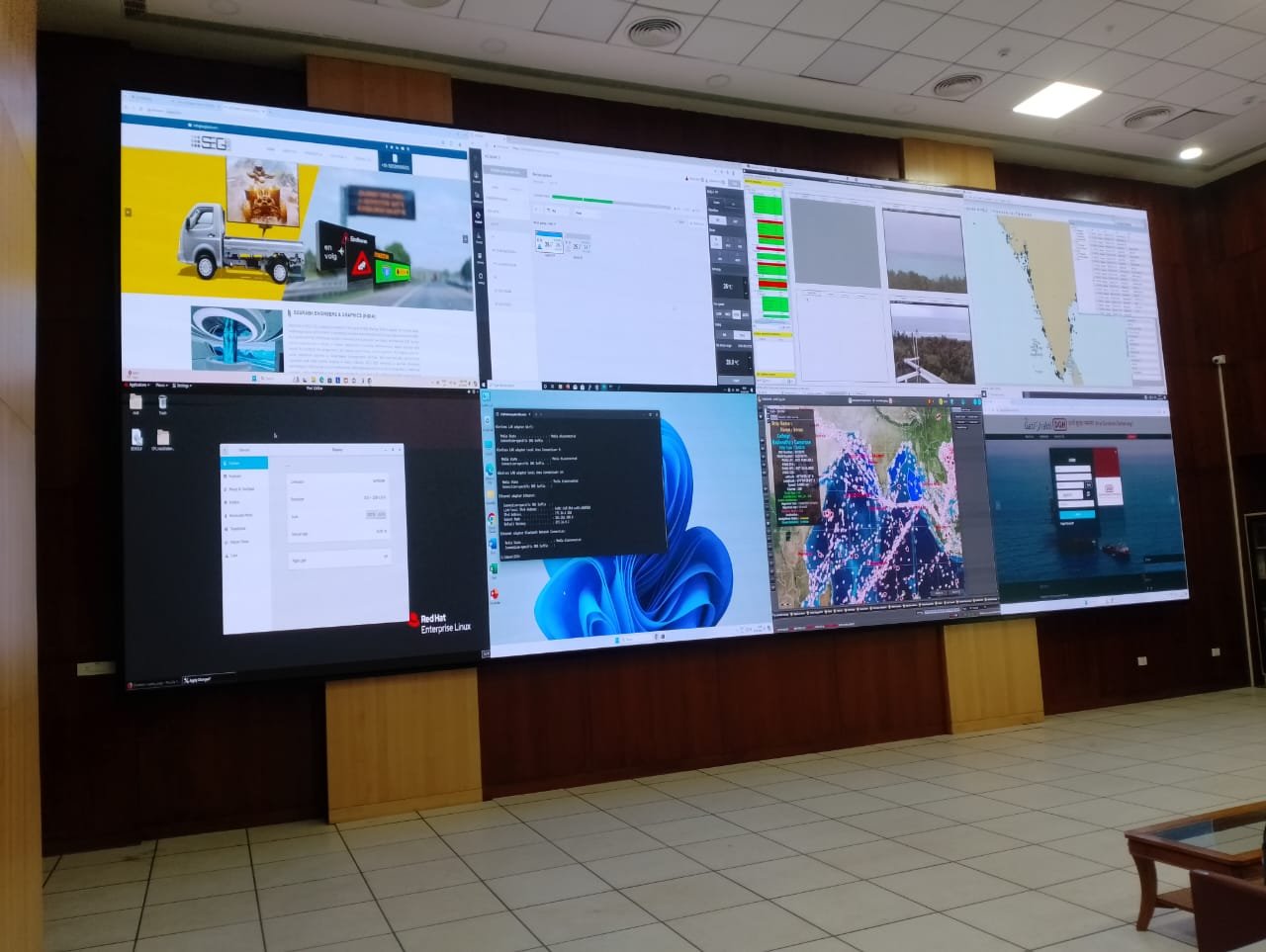

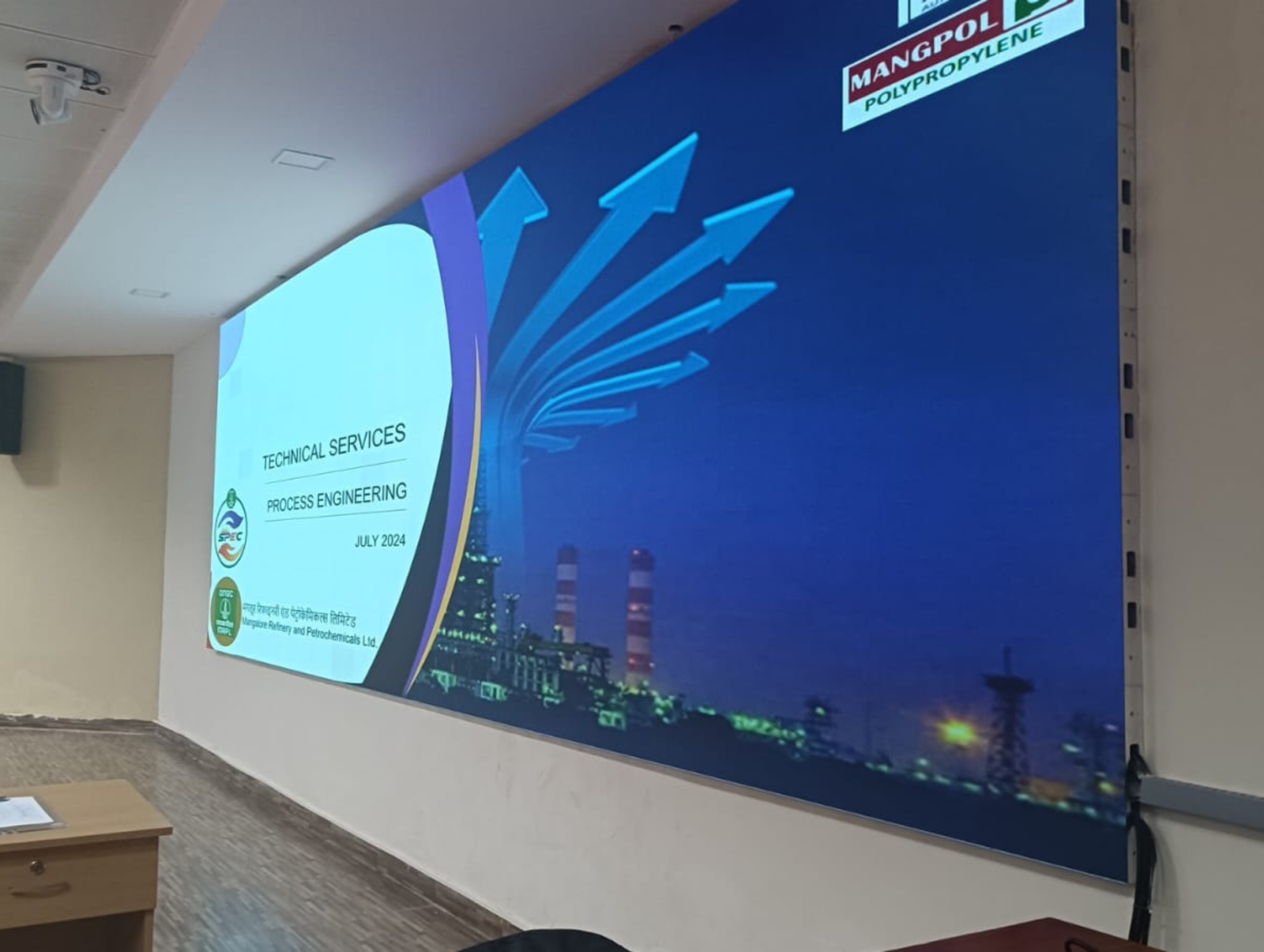

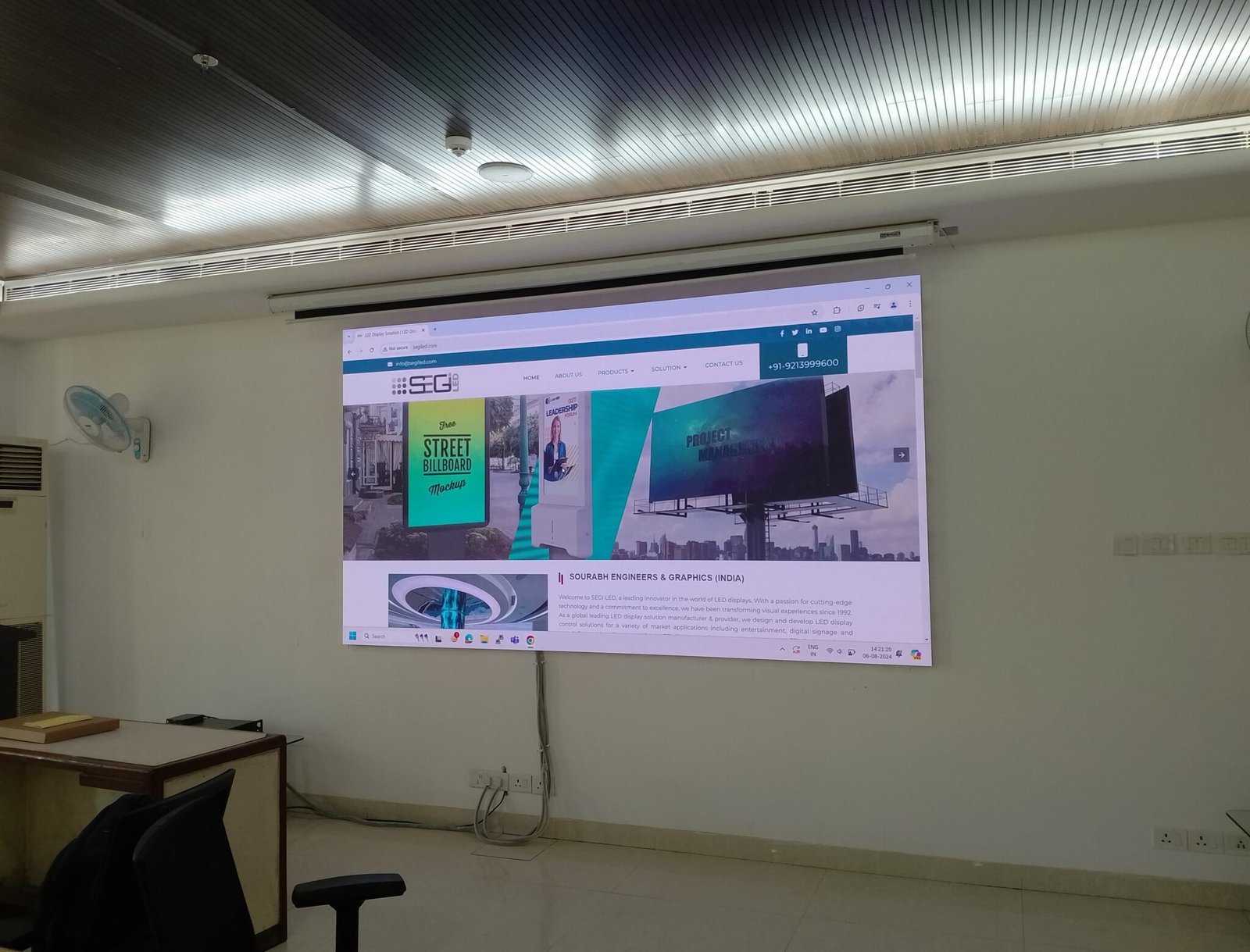

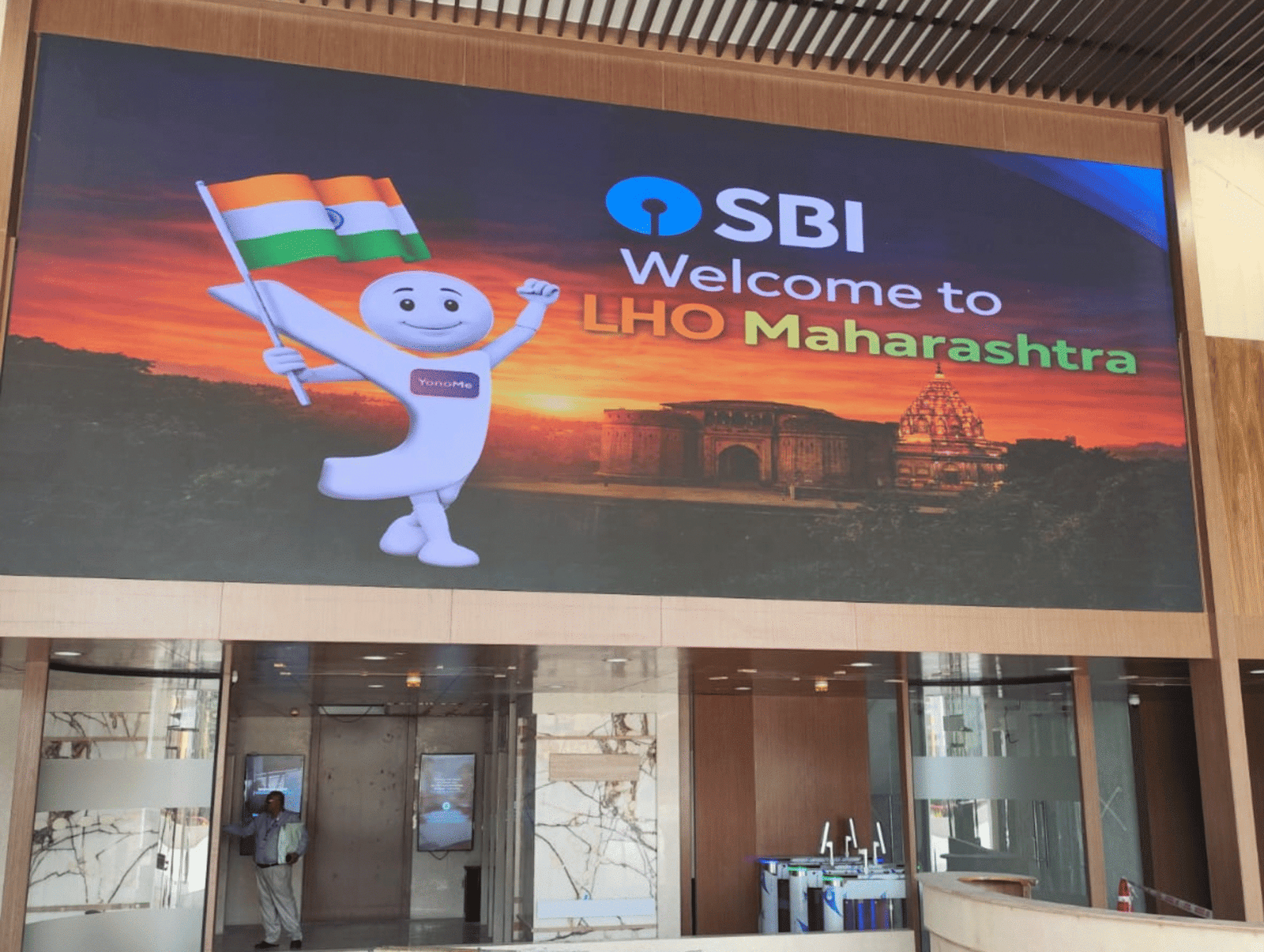

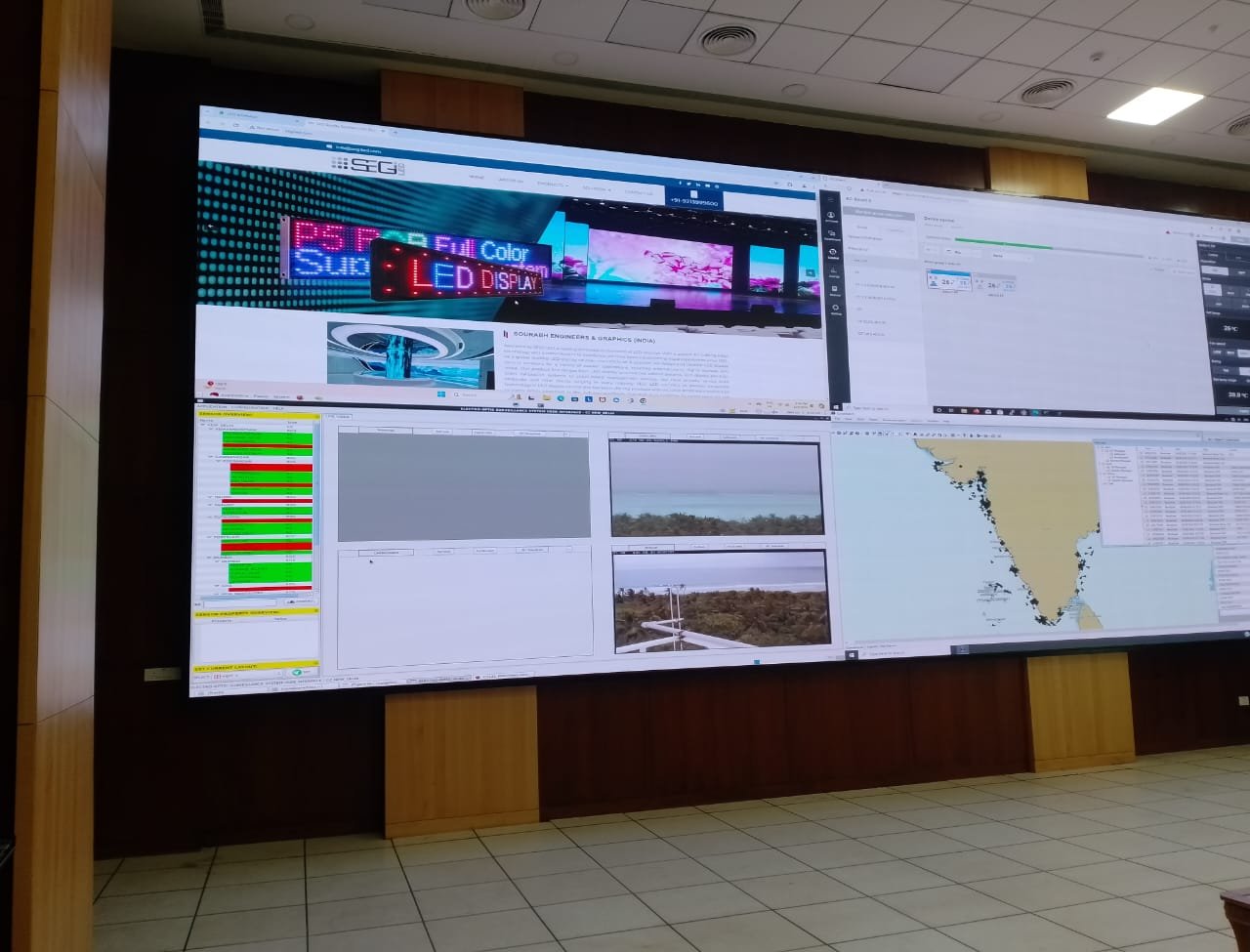

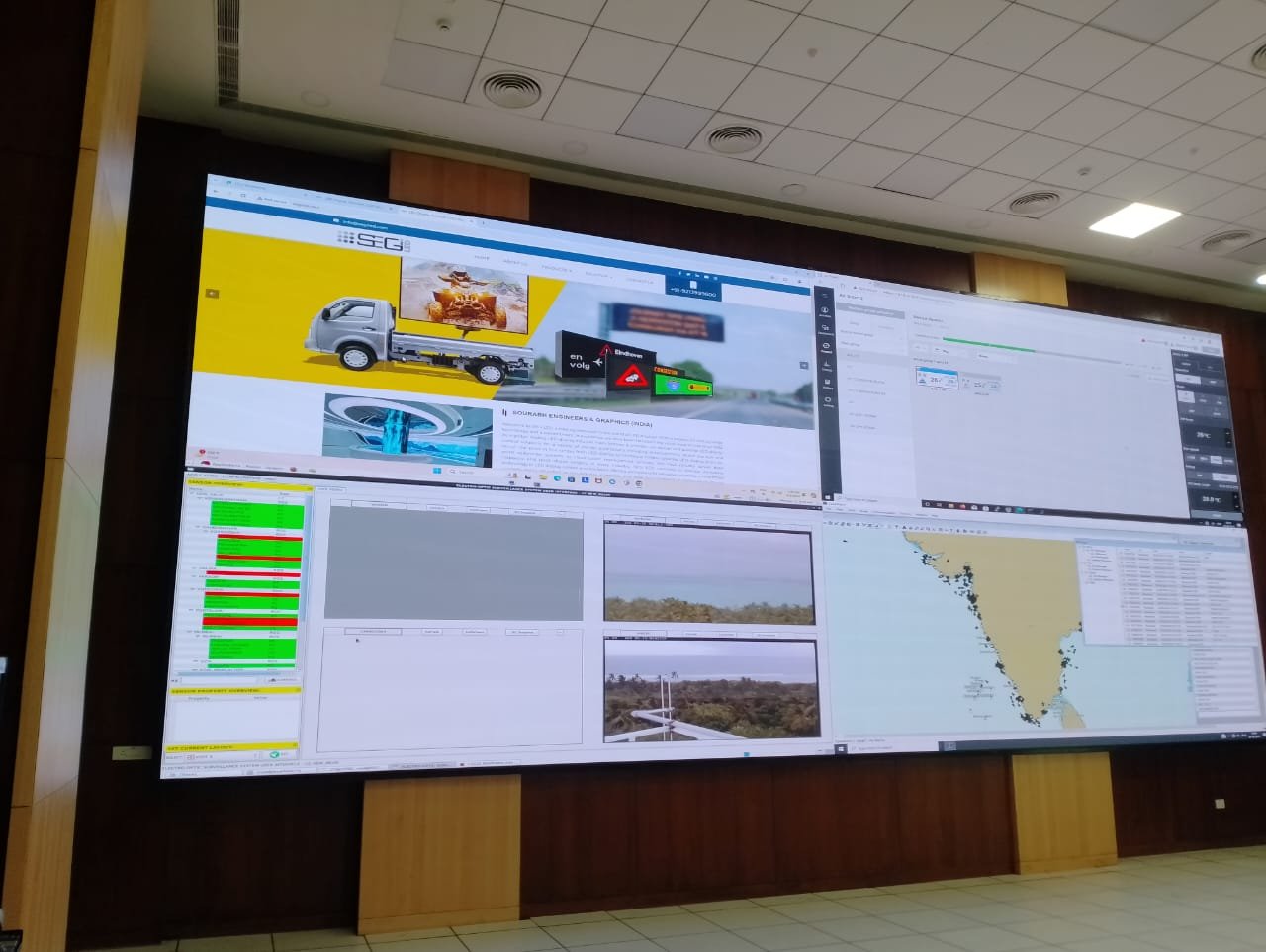

| Preferred Applications | Indoor Fixed Installation, Broadcasting, Auditorium, Conference Halls, Control Rooms, Data Centre, Command & Control Centre, New Rooms, Malls, Retail, Information Display, Airports, Railway Stations, Metro Stations, Petrol Stations, Stadiums, Smart Cities, Banks, Hotels, Clubs etc. | ||||||
Remark: Above data is subject to change & adjustment without prior notice due to continuous R&D by our team. The above specifications can be customized with technical enhancements to meet buyer/client requirement, necessary arrangements are made in the product to meet the required parameters. The offered product shall be as per requirement of buyer & hence precise details can be sought from our team. Offered product specifications are adjusted & revised in order to match the actual product performance & specifications.
Active LED Displays are known for its Vibrant colors, Seamless large Screens, and modular designs. The TrueColor Technology ensures exact color reproduction as in the original content resulting in the best Video and image output on the screen. The flexibility and modular design of LED Screens makes it a perfect solution for various applications like Broadcast studios, Control Room Displays, Indoor and Outdoor Advertising, Large Events and shows, Board Rooms and Meeting Room etc. SEGi LED has a team of experienced engineers with capabilities of chip level repairing. Our consultative approach helps our clients to get the right solution as per their application and budgets.

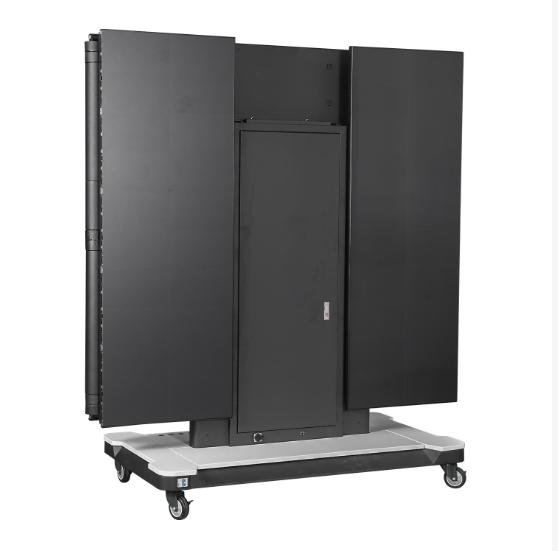

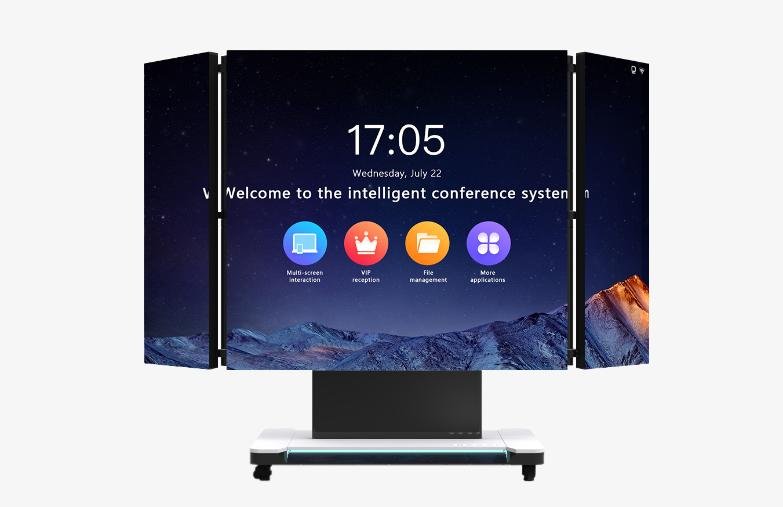

Specially designed Active LED displays are lightweight and agile. Making the process of installation and dismantling of cabinets easier and effortless. High tenacity and excellent heat dissipation are some unique features. It comes with a special interlock mechanism between cabinets which allows for a ±15 degree of angular installation. This enables us to have a curved screen setup as per site requirements. These displays are light weight and requires no supporting structure which helps in a quick and effortless process of installation and dismantling of LED Display resulting in time saving.
